Setpoint
Blackbox tuning analysis for Betaflight
Load a blackbox log and Setpoint shows you the step response, the noise, and how closely the gyro follows your sticks. Put a few packs side by side, change one thing, and fly again.
It's free. It runs in your browser or on Windows and Linux, and your logs stay on your own computer.
Step response
Overlay as many logs as you like. Each one gets its own peak, t50 latency and rise time, so after five packs you can tell whether the last change actually helped.
Noise and spectrum

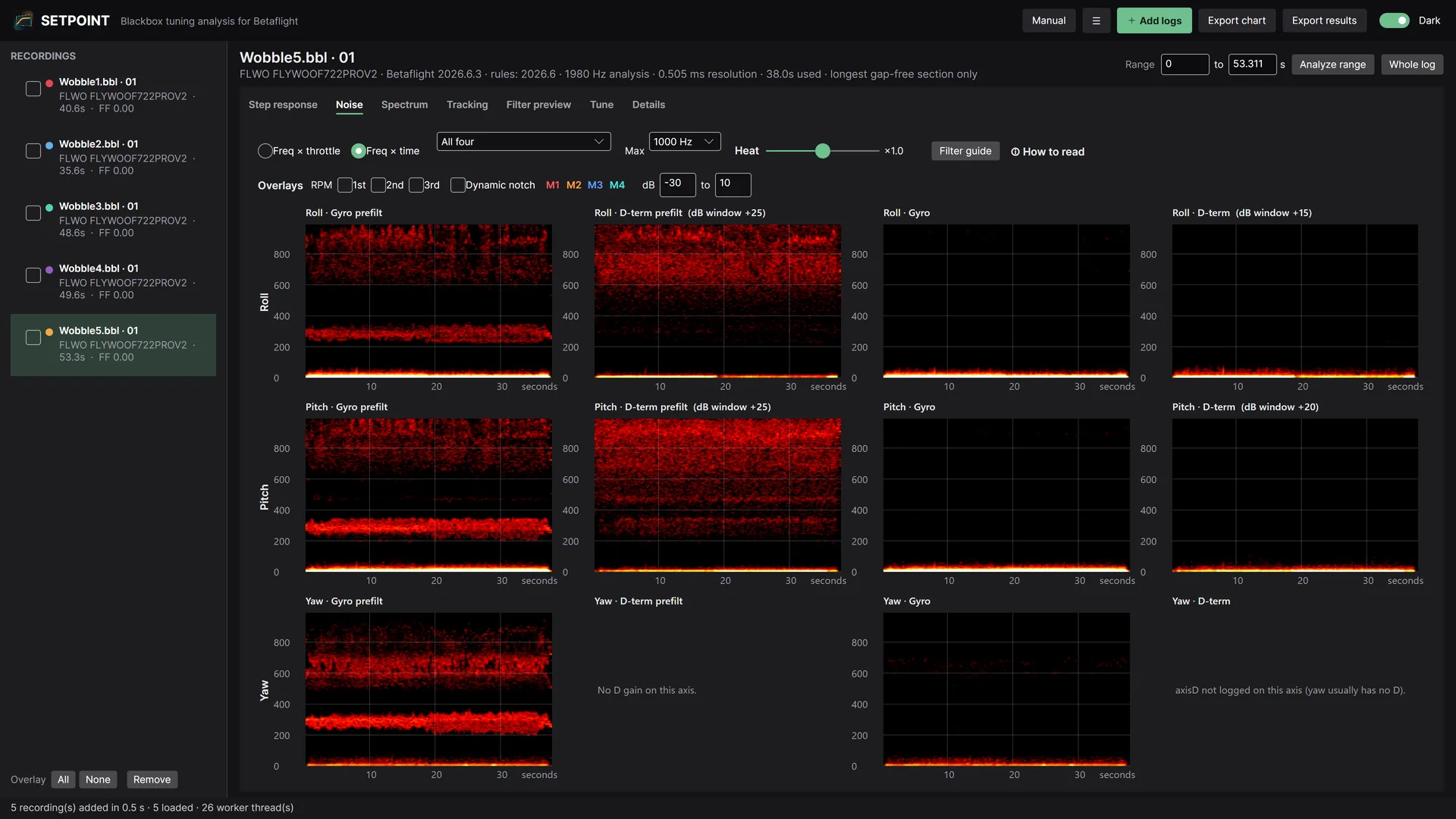

Gyro and D-term noise by throttle and over time, before and after filtering, with the RPM harmonics and the dynamic notch drawn on top. If something is getting through, you'll see where.
Filter preview
Try a different lowpass type or cutoff and see what it would do to the recorded noise and to filter delay before you plug the quad back in. The estimates follow Betaflight's own filter code.
The tune that flew
Every log carries the settings it was flown with. Setpoint lays them out the way you know them from Configurator, so you always know which tune you're looking at.
There's also a tracking view for setpoint against gyro, a built-in decoder so you don't need any other tools, and a run picker for logs with more than one flight in them. A 40 second pack usually takes about a second to analyse.
Download
Version 2.3.2. Each build is a single file with nothing else to install. Downloads are hosted on GitHub.
In your browser
Nothing to install. Works in Chrome, Edge, Firefox and Safari on a desktop.
Open the appOlder versions and checksums are on the releases page.
Contact
Found a bug, have a log that doesn't look right, or want to ask about a tune? Send me a message and I'll reply by email.
If it's a bug, tell me your Setpoint and Betaflight versions. If it's about a log, I'll send you a link to upload it.
